You can replace the values of pixels or voxels in images by using the Replace pixel/voxel values command on the Utilities menu. Suppose, for example, that you have a set of images that contain not a number (NaN) values. To be able to use MIPAV algorithms on those images, you first need to replace those not a number values. The Replace pixel/voxel value command provides an easy way to replace those values or any pixel or voxel values.
To replace pixel or voxel value in images
1 Open the image whose pixels or voxels you want to change.
2 Select Utilities > Replace pixel/voxel values.

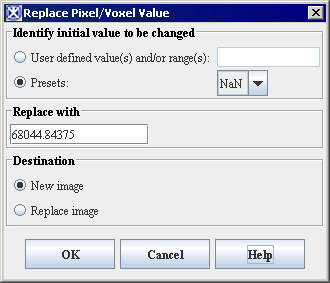

The Replace Pixel/Voxel Value dialog box (Figure 52) opens.
Replace Pixel or Voxel Value dialog box
|
User-defined value
|
Specifies the value that you want to replace in the image.
|
|
|
Presets
|
NaN-Not a number.  -Positive infinity. -Negative infinity. | |
|
Replace with
|
Accept the default value or type another value.
| |
|
New image
|
Shows in a new image window the image in which the value was replaced.
| |
|
Replace image
|
Replaces the current image with the image in which the value was replaced.
| |
|
OK
|
Applies the parameters that you specified to subsample the image.
| |
|
Cancel
|
Disregards any changes you made in this dialog box, closes the dialog box, and does not subsample the image.
| |
|
Help
|
Displays online help for this dialog box.
| |
3 Do one of the following:
- a Select User defined value and type the value that you want to replace in the text box
< - b Select Presets and then select one of the following in the list box:
- NaN -Not a number
- -Positive infinity
- -Negative infinity
- NaN -Not a number
4 Do one of the following:
- Accept the default value in Replace with.
- Type another value in the text box.
5 Select one of the following:
- New image -To create a new image in its own image window using the replaced value
- Replace image -To overwrite the original image in the original image window with an image using the replaced value
6 Click OK. The image with the replaced value appears in either a new window or in the original image window.
